Leakage current measurement

LCM1 - Leakage current meter

  • Current measurement ranges 0.2 – 2 – 20 – 200 – 2000 uA
  • Selectable serial resistance 10k – 5k – 1k – 500R
  • Current limit warning 0 ÷ 2000 uA
  • Leakage current measurement accuracy +-3% from range
  • Capacity present indication
  • Internal DC power supply 1.2 V to 60 V
  • Voltage setting in 0.1V steps
  • Output current min. 60mA
  • Selectable length of measurement 0 ÷ 999 s
  • Communication via RS232, RS485(internally switched)
  • Mains 230 V/ 50Hz



LCM2 - Leakage current meter

  • Current measurement ranges 0.2 – 2 – 20 – 200 – 2000 – 10000 uA
  • Selectable serial resistance 10k – 5k – 1k – 500R - 200R
  • Current limit warning 0 ÷ 10000 uA
  • Leakage current measurement accuracy +-3% from range
  • Capacity present indication
  • Internal DC power supply 1.2 V to 150 V
  • Voltage setting in 0.1V steps
  • Output current min. 60mA
  • Selectable length of measurement 0 ÷ 999 s
  • Communication via Ethernet
  • Mains 230 V/ 50Hz



LCM3 - Leakage current meter

  • Current measurement ranges 0.2 – 2 – 20 – 200 – 2000 - 20000 uA
  • Fixed serial resistance 1k
  • Current limit warning 0 ÷ 20000 uA
  • Leakage current measurement accuracy +-3% from range
  • Capacity present indication
  • Internal DC power supply 2 V to 300 V
  • Voltage setting in 0.1V steps
  • Output current min. 200mA
  • Selectable length of measurement 0 ÷ 999 s
  • Communication via Ethernet
  • Mains 230 V/ 50Hz



8-channel leakage current to voltage converter card

  • Current measurement ranges 0.2 – 2 – 20 – 200 – 2000 uA
  • Selectable serial resistance 10k, 5k or 1k
  • Leakage current measurement accuracy +-5% from range
  • Capacity present indication
  • Max input voltage 60V DC
  • Output voltage -+10V or +-2V proportional to input current
  • Power supply +-15V




8-channel leakage current to voltage converter card

  • Current measurement ranges 0.2 – 2 – 20 – 200 – 2000 - 10000 uA
  • Selectable serial resistance 10k, 5k or 1k
  • Leakage current measurement accuracy +-5% from range
  • Capacity present indication
  • Max input voltage 300V DC
  • Output voltage 4V proportional to input current
  • Power supply +-15V




1-channel leakage current to voltage converter card

  • Current measurement ranges 1 – 10 – 100 – 1000 – 10000 uA
  • Selectable serial resistance 50R, 500R or 5k
  • Leakage current measurement accuracy +-5% from range
  • Capacity present indication
  • Max input voltage 60V DC
  • Output voltage -+10V proportional to input current
  • Power supply +-15V

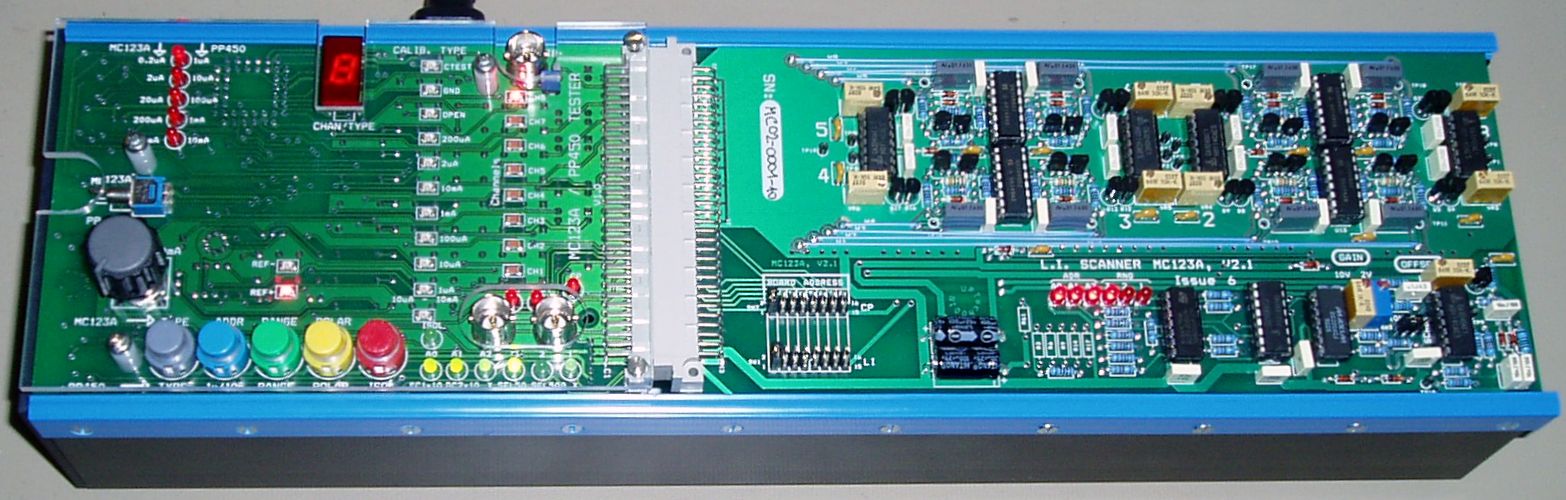

Leakage current to voltage converter card calibration tester

  • Fixed and variable both polarity constant current sources
  • Channel and range selection
  • Leakage current to voltage converter card is during calibration inserted to tester
  • Mains 230V AC
